Module AI_Balancer
SP:N MP:Y AI:Y HU:N TYP:A -- This module contains the AI_BALANCER class.
AI Balancing will replace in multi player missions non-occupied human slots with AI groups, in order to provide an engaging simulation environment, even when there are hardly any players in the mission.
1) AI.AIBalancer#AIBALANCER class, extends Core.Fsm#FSM_SET
The AI.AIBalancer#AIBALANCER class monitors and manages as many AI GROUPS as there are CLIENTS in a SETCLIENT collection not occupied by human players. In other words, use AIBALANCER to simulate human behaviour by spawning in replacement AI.
The AI_BALANCER class manages internally a collection of AI management objects, which govern the behaviour of the spawned AI Wrapper.Group#GROUP manages the functionality to control the Finite State Machine (FSM) and calls for each event the state transition methods providing the internal Core.Fsm#FSM_SET.Set object containing the AI and additional event parameters provided during the event.
1.1) AI_BALANCER construction
Create a new AI_BALANCER object with the AI_BALANCER.New() method:

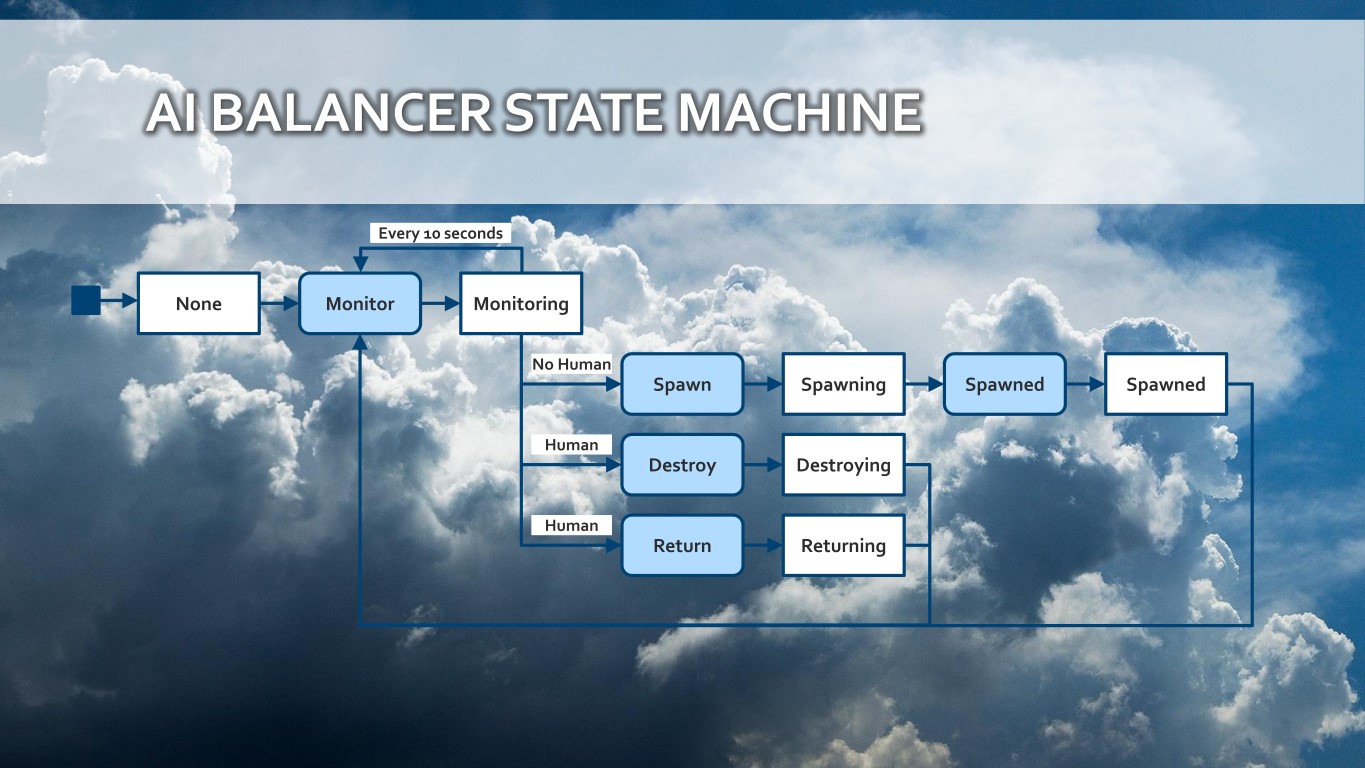

1.2) AI_BALANCER is a FSM
The AI_BALANCER is a state machine: it manages the different events and states of the Core.Fsm#FSM_SET.Set it is governing. The AI_BALANCER has a default flow to manage the set.
1.2.1) AI_BALANCER States
- Monitoring ( Set ): Monitoring the Set if all AI is spawned for the Clients.
- Spawning ( Set, ClientName ): There is a new AI group spawned with ClientName as the name of reference.
- Spawned ( Set, AIGroup ): A new AI has been spawned. You can handle this event to customize the AI behaviour with other AI FSMs or own processes.
- Destroying ( Set, AIGroup ): The AI is being destroyed.
- Returning ( Set, AIGroup ): The AI is returning to the airbase specified by the ReturnToAirbase methods. Handle this state to customize the return behaviour of the AI, if any.
1.2.2) AI_BALANCER Events
- Monitor ( Set ): Every 10 seconds, the Monitor event is triggered to monitor the Set.
- Spawn ( Set, ClientName ): Triggers when there is a new AI group to be spawned with ClientName as the name of reference.
- Spawned ( Set, AIGroup ): Triggers when a new AI has been spawned. You can handle this event to customize the AI behaviour with other AI FSMs or own processes.
- Destroy ( Set, AIGroup ): The AI is being destroyed.
- Return ( Set, AIGroup ): The AI is returning to the airbase specified by the ReturnToAirbase methods.
1.3) AI_BALANCER spawn interval for replacement AI
Use the method AI_BALANCER.InitSpawnInterval() to set the earliest and latest interval in seconds that is waited until a new replacement AI is spawned.
1.4) AI_BALANCER returns AI to Airbases
By default, When a human player joins a slot that is AI_BALANCED, the AI group will be destroyed by default. However, there are 2 additional options that you can use to customize the destroy behaviour. When a human player joins a slot, you can configure to let the AI return to:
- AI_BALANCER.ReturnToHomeAirbase: Returns the AI to the home Wrapper.Airbase#AIRBASE.
- AI_BALANCER.ReturnToNearestAirbases: Returns the AI to the nearest friendly Wrapper.Airbase#AIRBASE.
Note that when AI returns to an airbase, it will trigger the Return event and will return, otherwise when the AI is destroyed, the Destroy event will be triggered.
API CHANGE HISTORY
The underlying change log documents the API changes. Please read this carefully. The following notation is used:
- Added parts are expressed in bold type face.
- Removed parts are expressed in italic type face.
Hereby the change log:
2017-01-08: AI_BALANCER:InitSpawnInterval( Earliest, Latest ) added.
AUTHORS and CONTRIBUTIONS
Contributions:
Dutch_Baron: Working together with James has resulted in the creation of the AI_BALANCER class. James has shared his ideas on balancing AI with air units, and together we made a first design which you can use now :-)
SNAFU: Had a couple of mails with the guys to validate, if the same concept in the GCI/CAP script could be reworked within MOOSE. None of the script code has been used however within the new AI_BALANCER moose class.
Authors:
- FlightControl: Framework Design & Programming and Documentation.
Global(s)
| AI_BALANCER |
Type AI_BALANCER
Global(s)
Type AI_Balancer
Type AI_BALANCER
AI_BALANCER class
Field(s)
- #string AI_BALANCER.ClassName
- AI_BALANCER:InitSpawnInterval(Earliest, Latest)
-
Sets the earliest to the latest interval in seconds how long AI_BALANCER will wait to spawn a new AI.
Provide 2 identical seconds if the interval should be a fixed amount of seconds.
Parameters
-
#number Earliest: The earliest a new AI can be spawned in seconds. -
#number Latest: The latest a new AI can be spawned in seconds.
Return value
self
-
- AI_BALANCER:New(SetClient, SpawnAI)
-
Creates a new AI_BALANCER object
Parameters
-
Core.Set#SET_CLIENT SetClient: A SET_CLIENT object that will contain the CLIENT objects to be monitored if they are alive or not (joined by a player). -
Functional.Spawn#SPAWN SpawnAI: The default Spawn object to spawn new AI Groups when needed.
Return value
-
- AI_BALANCER:ReturnToHomeAirbase(ReturnTresholdRange)
-
Returns the AI to the home Wrapper.Airbase#AIRBASE.
Parameter
-
Dcs.DCSTypes#Distance ReturnTresholdRange: If there is an enemy Wrapper.Client#CLIENT within the ReturnTresholdRange given in meters, the AI will not return to the nearest Wrapper.Airbase#AIRBASE.
-
- AI_BALANCER:ReturnToNearestAirbases(ReturnTresholdRange, ReturnAirbaseSet)
-
Returns the AI to the nearest friendly Wrapper.Airbase#AIRBASE.
Parameters
-
Dcs.DCSTypes#Distance ReturnTresholdRange: If there is an enemy Wrapper.Client#CLIENT within the ReturnTresholdRange given in meters, the AI will not return to the nearest Wrapper.Airbase#AIRBASE. -
Core.Set#SET_AIRBASE ReturnAirbaseSet: The SET of Core.Set#SET_AIRBASEs to evaluate where to return to.
-
- #boolean AI_BALANCER.ToHomeAirbase
- #boolean AI_BALANCER.ToNearestAirbase
- AI_BALANCER:onenterDestroying(SetGroup, AIGroup, From, Event, To, ClientName)
-
Parameters
-
Core.Set#SET_GROUP SetGroup: -
Wrapper.Group#GROUP AIGroup: -
From: -
Event: -
To: -
ClientName:
-
- AI_BALANCER:onenterMonitoring(SetGroup)
-
Parameter
-
SetGroup:
-
- AI_BALANCER:onenterReturning(SetGroup, AIGroup, From, Event, To)
-
Parameters
-
Core.Set#SET_GROUP SetGroup: -
Wrapper.Group#GROUP AIGroup: -
From: -
Event: -
To:
-
- AI_BALANCER:onenterSpawning(SetGroup, ClientName, AIGroup, From, Event, To)
-
Parameters
-
Core.Set#SET_GROUP SetGroup: -
#string ClientName: -
Wrapper.Group#GROUP AIGroup: -
From: -
Event: -
To:
-
