HDK

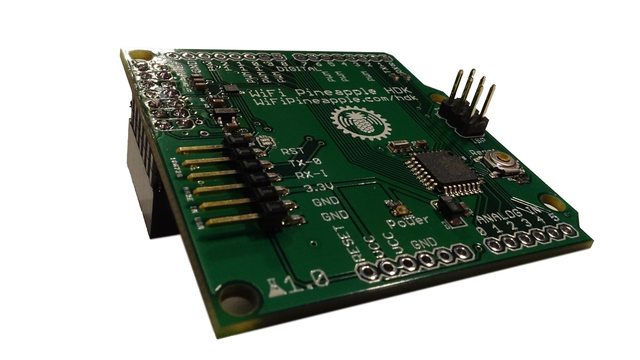

The WiFi Pineapple Mark V HDK is an Arduino Pro based microcontroller board featuring the ATmega328.

Schematic & Reference Design

Summary

  • Microcontroller - ATmega328
  • Operating Voltage - 3.3V
  • Input Voltage - 3.3V provide by the Mark V
  • Digital I/O Pins - 14 (of which 6 provide PWM output)
  • Analog Input Pins - 6
  • DC Current per I/O Pin - 40 mA
  • Flash Memory - 32KB of which 2 KB used by bootloader
  • SRAM - 2 KB (ATmega328)
  • EEPROM - 1 KB (ATmega328)
  • Clock Speed - 20 MHz
